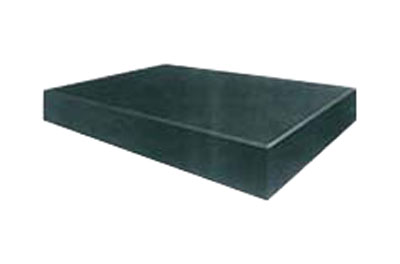

| Granite Inspection Surface Plate |
|
|
Features :
|
With high hardness, stable function, long working life.
Less susceptible to corrosion, non-distorted, minimal changes in dimension due to temperature changes.
No burrs or protrusions can form on its surface. Its flatness remains high even though it has been used for a long time. It causes no damage to work pieces or instruments. |
|
| |
| Specifications : |
| |
Size (mm) |
Order No. |
Grade 00 precision (μm) |
Grade 0 precision (μm) |
| |
150*100*40 |
521-101 |
2.5 |
5 |
| |
160*160*50 |
521-102 |
2.5 |
5 |
| |
250*160*50 |
521-103 |
3 |
5.5 |
| |
250*250*50 |
521-103-1 |
3 |
5.5 |
| |
300*200*50 |
521-104 |
3 |
5.5 |
| |
300*200*80 |
521-104-1 |
3 |
6 |
| |
300*300*70 |
521-104-2 |
3 |
6 |
| |
350*300*100 |
521-105 |
3 |
6 |
| |
400*250*70 |
521-106 |
3 |
6 |
| |
400*400*100 |
521-106-1 |
3.5 |
6.5 |
| |
630*400*100 |
521-107 |
3.5 |
7 |
| |
630*630*100 |
521-107-1 |
4 |
8 |
| |
800*500*130 |
521-108 |
4 |
8 |
| |
1000*630*150 |
521-110 |
4.5 |
9 |
| |
1000*750*150 |
521-110-1 |
5 |
9 |
| |
1000*1000*150 |
521-110-2 |
5 |
10 |
| |
1600*1000*200 |
521-116 |
6 |
12 |
| |
2000*1000*250 |
521-120 |
6.5 |
13 |
| |
1600*1600*300 |
521-116-1 |
6.5 |
14 |
| |
2000*1600*300 |
521-120-1 |
7 |
15 |
| |
2500*1600*300 |
521-125 |
8 |
16 |
| |
3000*2000*500 |
521-130 |
9 |
18 |
| |
4000*2000*500 |
521-140 |
11 |
22 |
| |
6000*2000*700 |
521-160 |
15 |
30 |
|
| |
