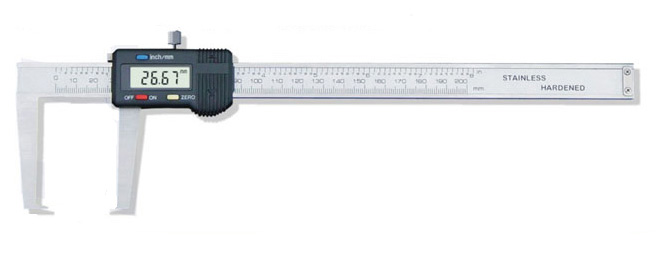

| 扁頭外槽數顯卡尺 |
|
|
| 主要特點 : |
測量工件外部凹槽尺寸及型腔壁厚
任意位置清零
帶數據輸出口 |
|
| |
| 技術參數 : |
| |
測量范圍 |
貨號 |
分辨力 |
極限誤差 |

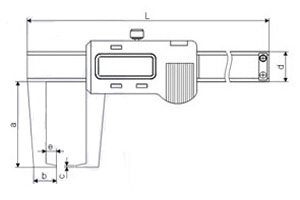

L |
a |
b |
c |
d |
e |
| |
0-150mm |
112-101 |
0.01mm |
±0.03mm |
250 |
40 |
15 |
1 |
16 |
5 |
| |
0-150mm |
112-101-1 |
0.01mm |
±0.04mm |
250 |
70 |
20 |
2 |
16 |
7 |
| |
0-150mm |
112-101-2 |
0.01mm |
±0.04mm |
290 |
100 |
30 |
2 |
20 |
10 |
| |
0-200mm |
112-102 |
0.01mm |
±0.04mm |
310 |
50 |
19 |
1 |
16 |
7 |
| |
0-200mm |
112-102-1 |
0.01mm |
±0.04mm |
310 |
80 |
23 |
1.5 |
16 |
9 |
| |
0-200mm |
112-102-2 |
0.01mm |
±0.05mm |
340 |
110 |
34 |
2 |
20 |
12 |
| |
0-300mm |
112-103 |
0.01mm |
±0.04mm |
400 |
60 |
21 |
1.5 |
17 |
8 |
| |
0-300mm |
112-103-1 |
0.01mm |
±0.05mm |
440 |
100 |
30 |
2 |
20 |
10 |
| |
0-300mm |
112-103-2 |
0.01mm |
±0.05mm |
480 |
150 |
32 |
2 |
24 |
12 |
| |
0-500mm |
112-105 |
0.01mm |
±0.06mm |
690 |
100 |
34 |
2 |
24 |
12 |
| |
0-500mm |
112-105-1 |
0.01mm |
±0.07mm |
690 |
150 |
36 |
2 |
24 |
12 |
| |
0-500mm |
112-105-2 |
0.01mm |
±0.08mm |
690 |
200 |
36 |
2 |
24 |
12 |
|
| |
