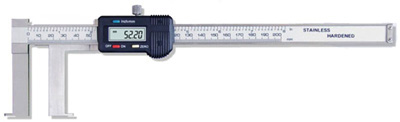

| 刀頭內槽數顯卡尺 |
|
|
| 主要特點 : |
可測量孔內較窄溝槽的尺寸
特殊訂貨需提供以下參數：
1、孔口直徑
2、溝槽至孔口距離
3、溝槽寬度
4、溝槽單邊深度
5、槽底形狀 |
|
| |

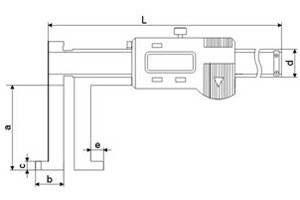

| 技術參數 : |
| |
測量范圍 |
貨號 |
分辨力 |
極限誤差 |
L |
a |
b |
c |
d |
e |
| |
14-150mm |
113-101 |
0.01mm |
±0.03mm |
236 |
30 |
12 |
1 |
16 |
5 |
| |
19-150mm |
113-101-1 |
0.01mm |
±0.05mm |
236 |
60 |
17 |
1.5 |
16 |
6 |
| |
25-150mm |
113-101-2 |
0.01mm |
±0.05mm |
291 |
90 |
23 |
3 |
20 |
8 |
| |
15-200mm |
113-102 |
0.01mm |
±0.04mm |
290 |
40 |
13 |
1 |
16 |
5 |
| |
23-200mm |
113-102-1 |
0.01mm |
±0.05mm |
290 |
70 |
20 |
1.5 |
16 |
7 |
| |
29-200mm |
113-102-2 |
0.01mm |
±0.05mm |
347 |
100 |
27 |
3 |
20 |
10 |
| |
17-300mm |
113-103 |
0.01mm |
±0.05mm |
400 |
50 |
15 |
1.5 |
17 |
5 |
| |
26-300mm |
113-103-1 |
0.01mm |
±0.06mm |
400 |
80 |
24 |
1.5 |
17 |
8 |
| |
33-300mm |
113-103-2 |
0.01mm |
±0.06mm |
453 |
110 |
31 |
3.5 |
20 |
12 |
| |
25-500mm |
113-105 |
0.01mm |
±0.06mm |
670 |
90 |
23 |
1.5 |
24 |
6 |
| |
35-500mm |
113-105-1 |
0.01mm |
±0.07mm |
670 |
120 |
33 |
1.5 |
24 |
8 |
| |
47-500mm |
113-105-2 |
0.01mm |
±0.07mm |
670 |
150 |
45 |
2 |
24 |
20 |
|
| |
