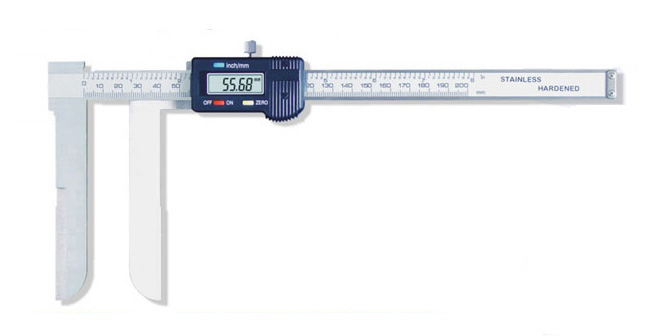

| 長爪內徑數顯卡尺 |
|
|
| 主要特點 : |
可測量較深內孔直徑
任意位置清零
帶數據輸出口 |
|
| |
| 技術參數 : |
| |
測量范圍 |
貨號 |
分辨力 |
極限誤差 |

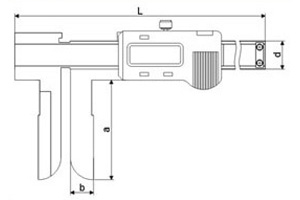

L |
a |
b |
d |
| |
15-150mm(.6-6") |
113-501 |
0.01mm(.0005") |
±0.03mm |
250 |
60 |
12 |
16 |
| |
20-150mm(.8-6") |
113-501-1 |
0.01mm(.0005") |
±0.04mm |
250 |
90 |
14 |
16 |
| |
25-150mm(1-6") |
113-501-2 |
0.01mm(.0005") |
±0.05mm |
250 |
150 |
22 |
24 |
| |
18-200mm(.7-8") |
113-502 |
0.01mm(.0005") |
±0.05mm |
305 |
75 |
14 |
16 |
| |
22-200mm(.9-8") |
113-502-1 |
0.01mm(.0005") |
±0.06mm |
305 |
100 |
17 |
16 |
| |
25-200mm(1-8") |
113-502-2 |
0.01mm(.0005") |
±0.07mm |
305 |
150 |
22 |
24 |
| |
20-300mm(.8-12") |
113-503 |
0.01mm(.0005") |
±0.05mm |
410 |
90 |
15 |
16 |
| |
22-300mm(.9-12") |
113-503-1 |
0.01mm(.0005") |
±0.06mm |
410 |
120 |
20 |
24 |
| |
25-300mm(1-12") |
113-503-2 |
0.01mm(.0005") |
±0.07mm |
410 |
150 |
22 |
24 |
| |
22-500mm(.9-20") |
113-505 |
0.01mm(.0005") |
±0.07mm |
700 |
100 |
20 |
24 |
| |
25-500mm(1-20") |
113-505-1 |
0.01mm(.0005") |
±0.08mm |
700 |
150 |
22 |
24 |
| |
35-500mm(1.4-20") |
113-505-2 |
0.01mm(.0005") |
±0.09mm |
700 |
200 |
30 |
24 |
| 注:英寸僅供合資企業及出口使用 |
|
| |
