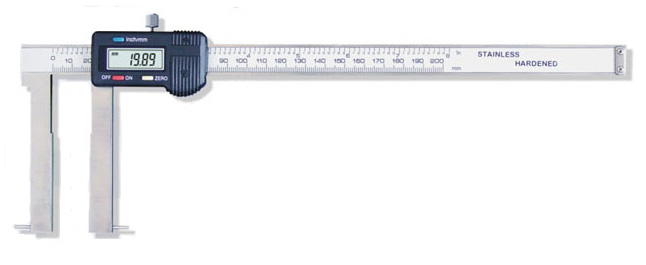

| 圓柱頭內槽數顯卡尺 |
|
|
| 主要特點 : |
可選平測頭或球測頭
可測量孔內較窄溝槽的尺寸
特殊訂貨需提供以下參數：
1、孔口直徑
2、溝槽至孔口距離
3、溝槽寬度
4、溝槽單邊深度
5、槽底形狀 |
|
| |
| 技術參數 : |
| |
測量范圍 |
貨號 |
分辨力 |
極限誤差 |

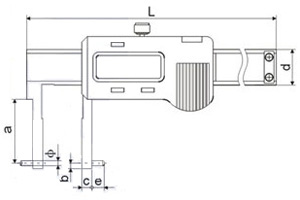

L |
a |
b |
c |
d |
e |
φ |
| |
24-150mm |
113-301 |
0.01mm |
±0.04mm |
250 |
30 |
3 |
7 |
16 |
5 |
2 |
| |
35-150mm |
113-301-1 |
0.01mm |
±0.05mm |
250 |
60 |
3 |
11.5 |
16 |
6 |
2 |
| |
50-150mm |
113-301-2 |
0.01mm |
±0.05mm |
260 |
90 |
4 |
17 |
20 |
8 |
3 |
| |
25-200mm |
113-302 |
0.01mm |
±0.04mm |
310 |
40 |
3 |
7.5 |
16 |
5 |
2 |
| |
40-200mm |
113-302-1 |
0.01mm |
±0.05mm |
310 |
70 |
3 |
13 |
16 |
7 |
3 |
| |
60-200mm |
113-302-2 |
0.01mm |
±0.05mm |
310 |
100 |
3 |
20 |
20 |
10 |
3 |
| |
30-300mm |
113-303 |
0.01mm |
±0.05mm |
410 |
50 |
3 |
10 |
16 |
5 |
2 |
| |
50-300mm |
113-303-1 |
0.01mm |
±0.06mm |
410 |
80 |
3 |
17 |
16 |
8 |
3 |
| |
60-300mm |
113-303-2 |
0.01mm |
±0.06mm |
410 |
110 |
3 |
20 |
20 |
10 |
3 |
| |
40-500mm |
113-305 |
0.01mm |
±0.06mm |
680 |
90 |
3 |
15 |
24 |
5 |
3 |
| |
60-500mm |
113-305-1 |
0.01mm |
±0.07mm |
680 |
120 |
3 |
20 |
24 |
10 |
3 |
| |
80-500mm |
113-305-2 |
0.01mm |
±0.07mm |
680 |
150 |
3 |
24 |
24 |
16 |
3 |
|
| |
