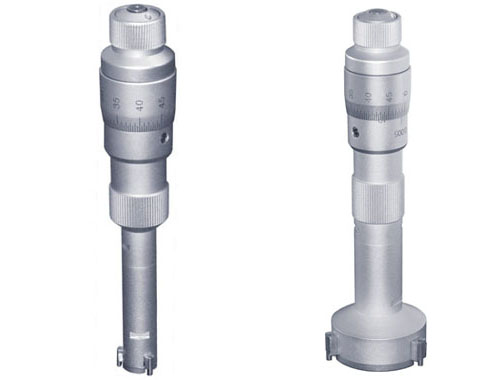

| 三點內徑千分尺 |
|
|
| 主要特點 : |
硬質合金測量表面確保高耐磨度，三爪硬質合金圓柱不易磨損
可接近盲孔底端進行測量
帶棘輪測力
帶精密環規供零點校對和重置 |
|
| |
| 技術參數 : |
| |
測量范圍 |
貨號 |
分度值 |
極限誤差 |
| |
6-8mm |
243-301 |
0.001mm |
0.004mm |
| |
8-10mm |
243-302 |
0.001mm |
0.004mm |
| |
10-12mm |
243-303 |
0.001mm |
0.004mm |
| |
12-16mm |
243-304 |
0.005mm |
0.004mm |
| |
16-20mm |
243-305 |
0.005mm |
0.004mm |
| |
20-25mm |
243-306 |
0.005mm |
0.004mm |
| |
25-30mm |
243-307 |
0.005mm |
0.004mm |
| |
30-40mm |
243-308 |
0.005mm |
0.004mm |
| |
40-50mm |
243-309 |
0.005mm |
0.004mm |
| |
50-63mm |
243-310 |
0.005mm |
0.004mm |
|
| |
